SPECIFICATIONS

Brand Name: Huepar

Hign-concerned Chemical: None

Origin: Mainland China

Type: Vertical & Horizontal Lasers

is_customized: No

Model Number: B03CG

Certification: CE

Certification: FCC

Certification: RoHS

Is Smart Device: no

Measurement Model: 12 lines

Wavelength: 505-520nm

Precision: +/- 3mm/10m

Laser Class: Class 2

Slef-leveling Range: +/-4°

Working Distance: 40m / 60m with detector

Operating Time: 6 hours with all laser beam on

Power Source: 5200mAh Li-ion battery

IP Rating: IP54

Operation Temperature: 14℉ ~ 122℉ (-10℃~ 50℃)

Mount Size: 1/4"-20

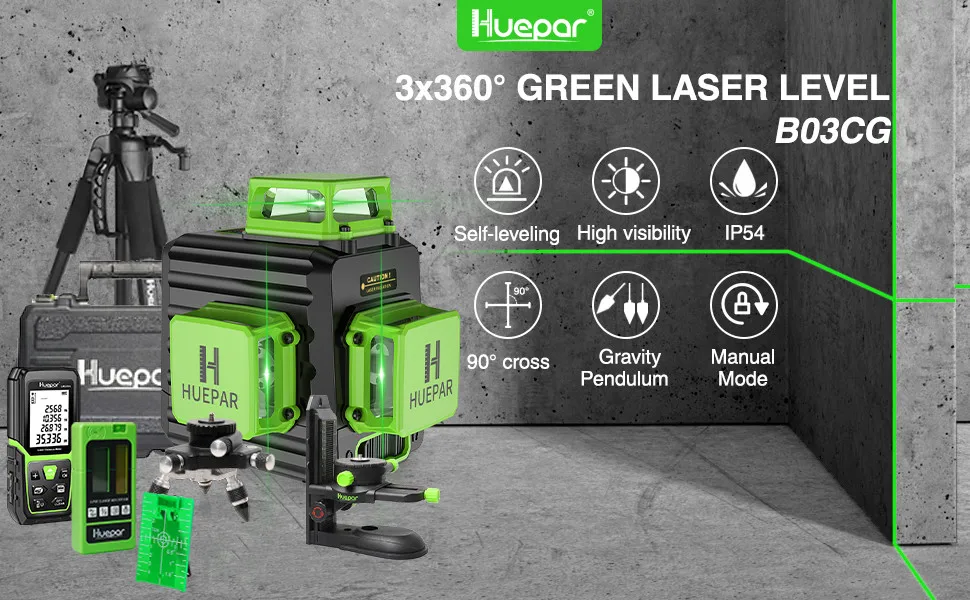

Huepar 12 Lines 3D Green Laser Level Horizontal And Vertical Cross Lines Auto Self-Leveling With Hard Case, Indoors and Outdoors

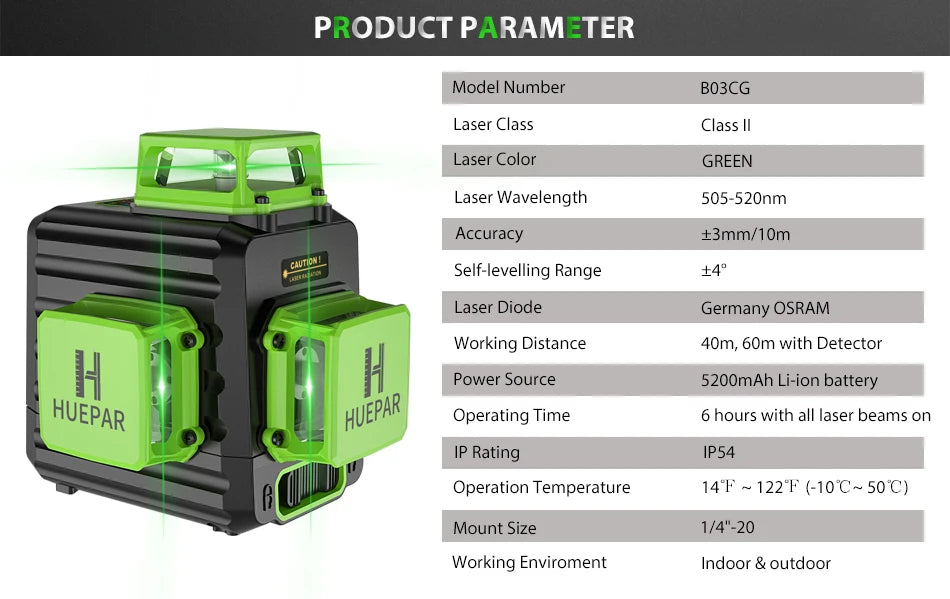

B03CG 3 x 360 Green Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

• Laser Wavelength: 505-520nm

• Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft

• Leveling/Compensation Range: +/-4°

• Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Receiver LR-5RG/LR-6RG

• Operating Time: 6 hours continual use with all laser beams on

• Power Source: 5200mAh Li-ion battery

• IP Rating: IP54 dust-proof, waterproof and shockproof

• Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)

• Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)

• Mount Size: 1/4"-20

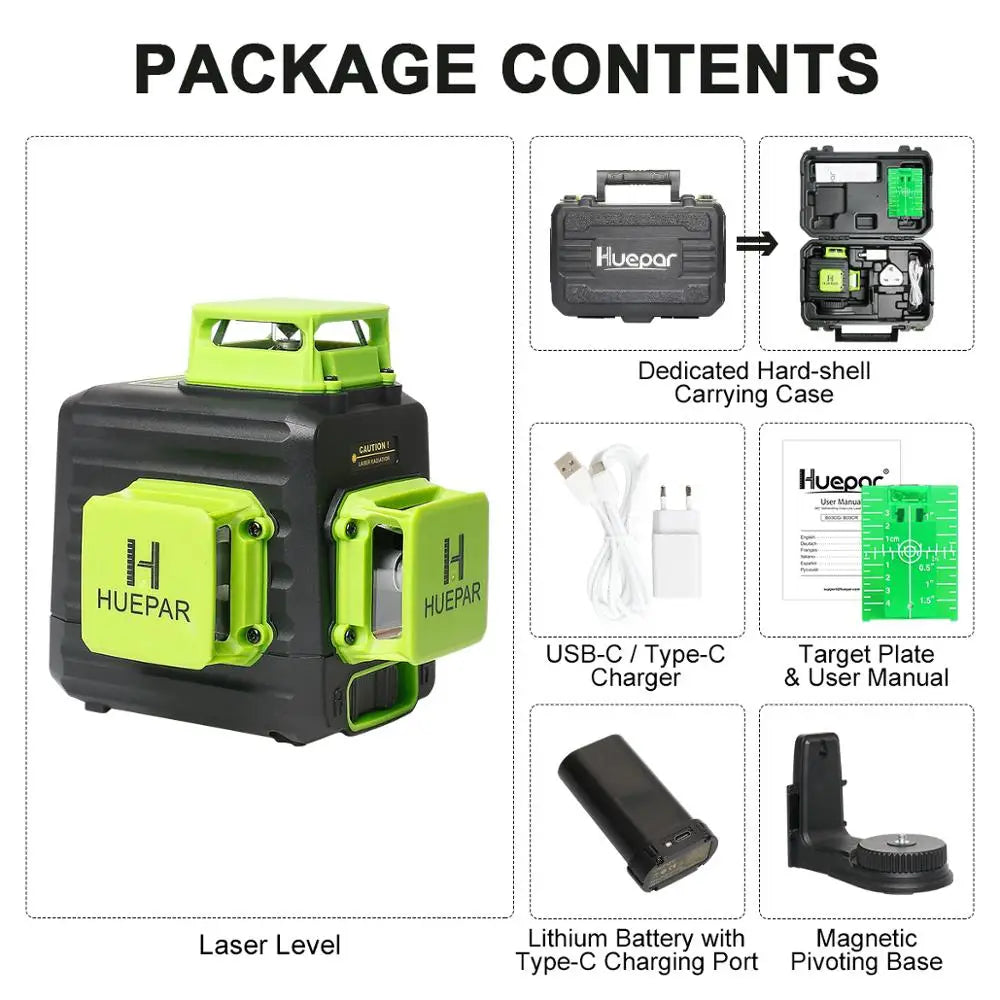

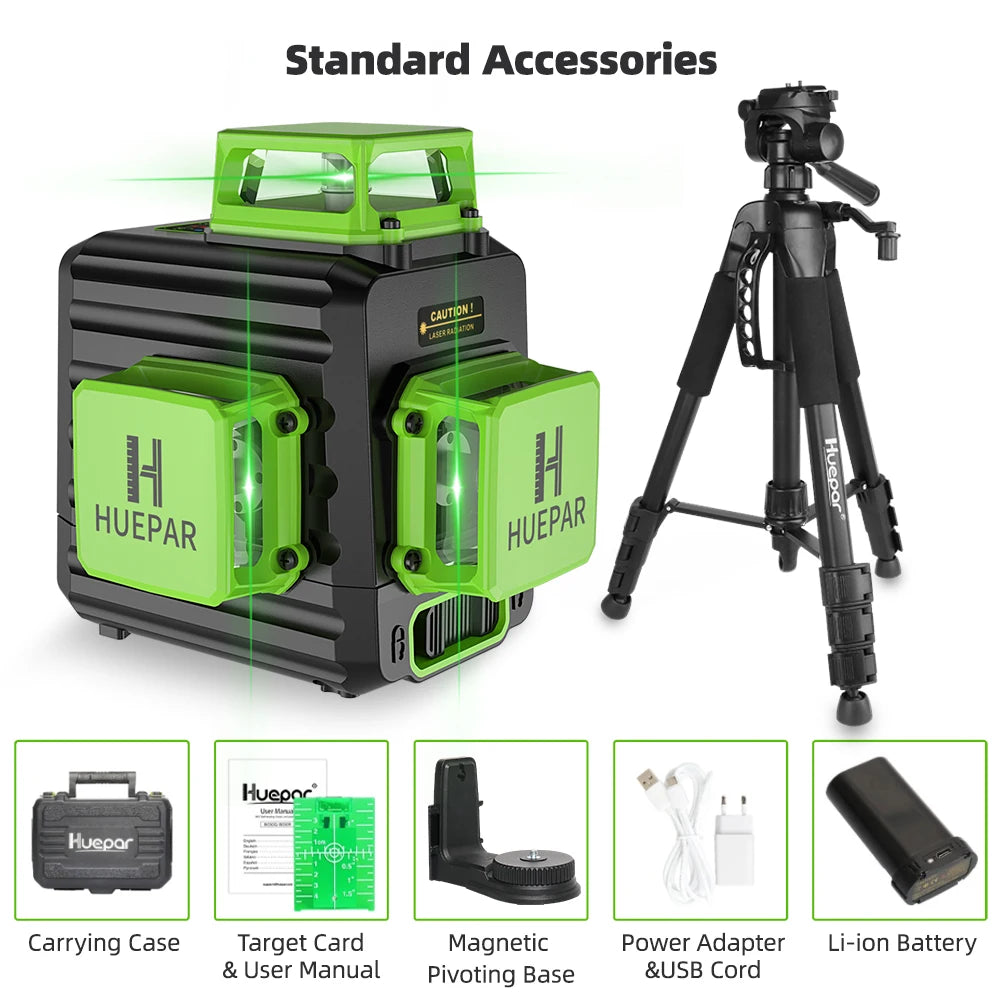

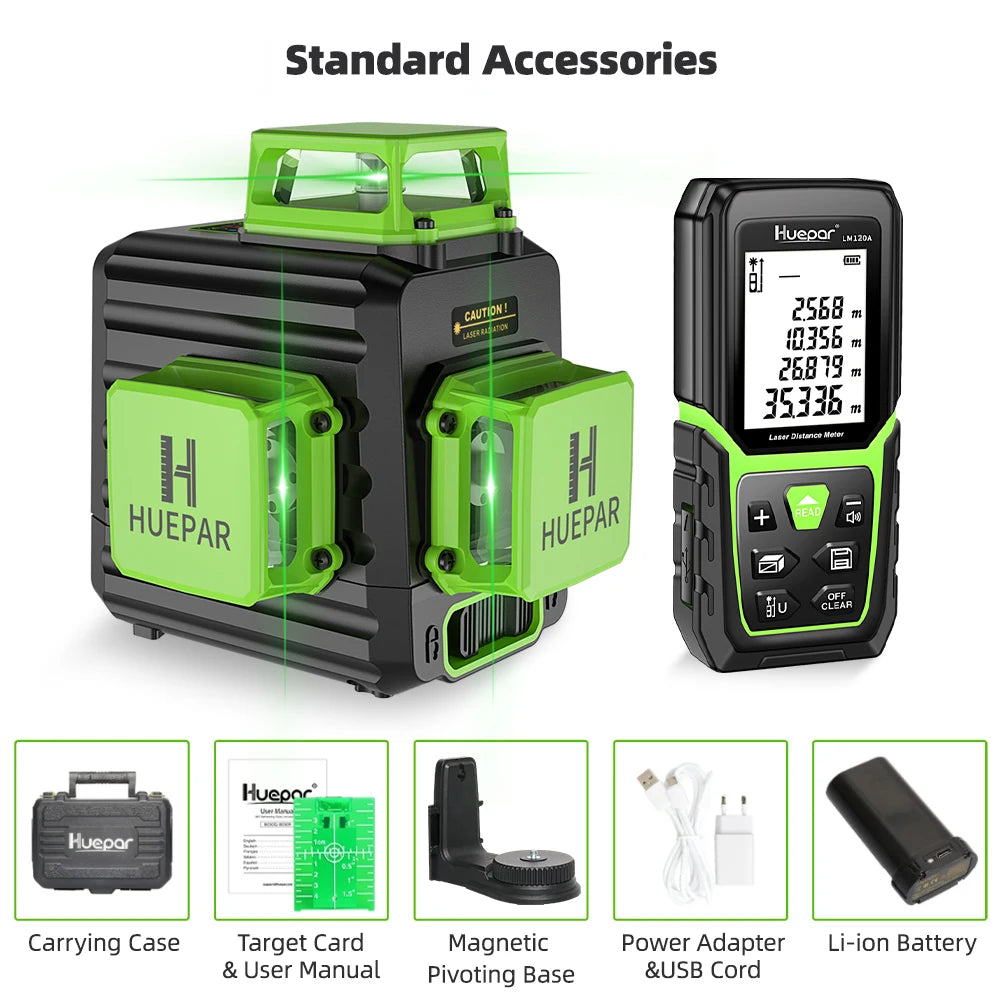

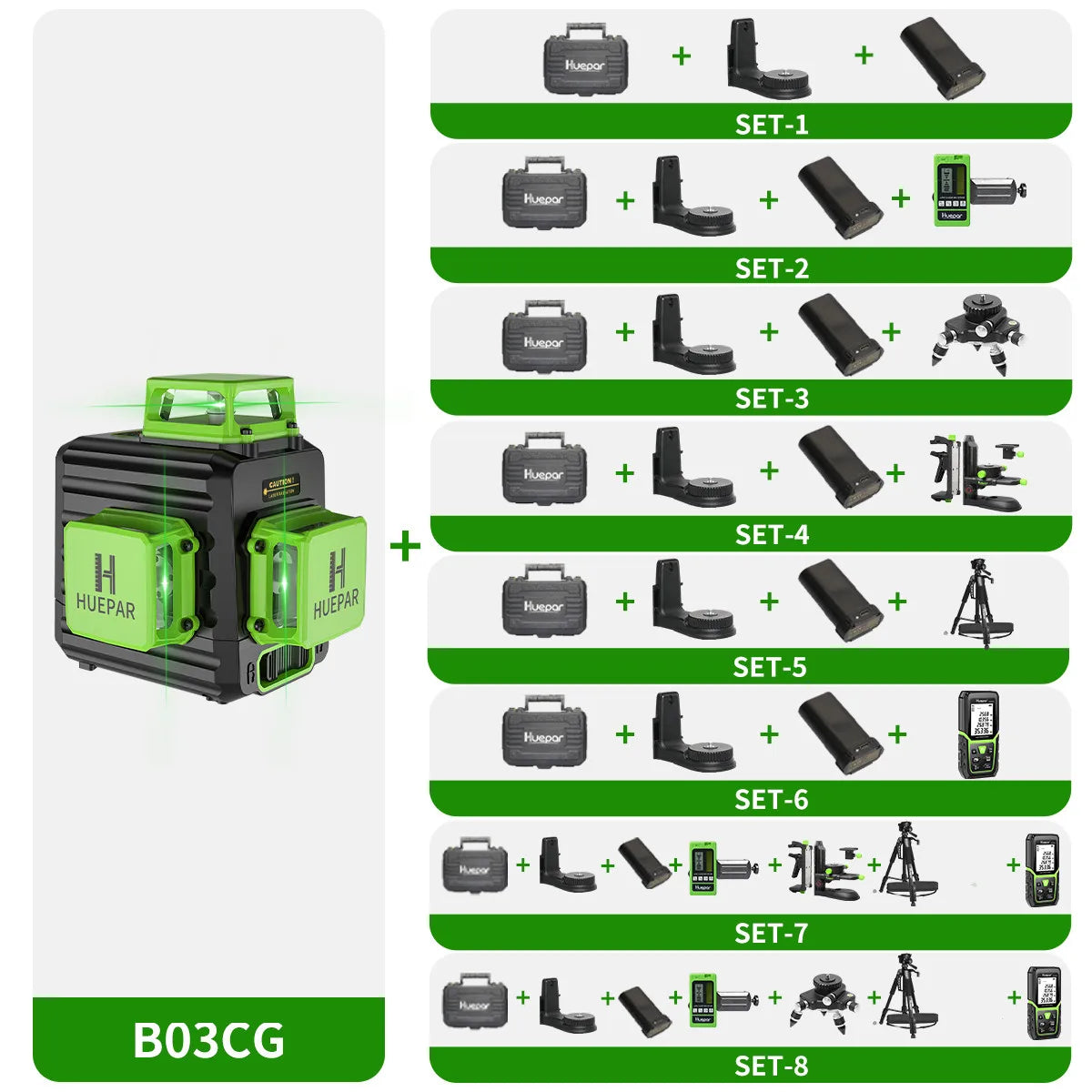

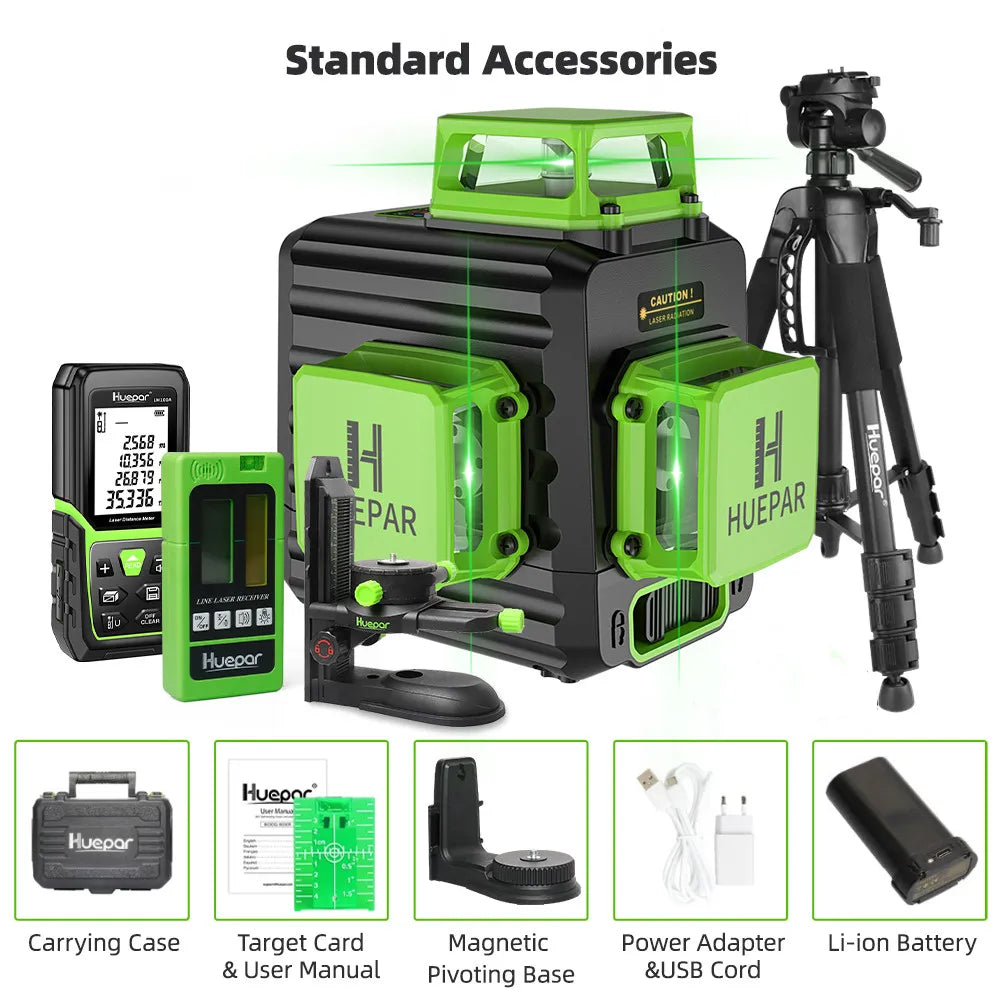

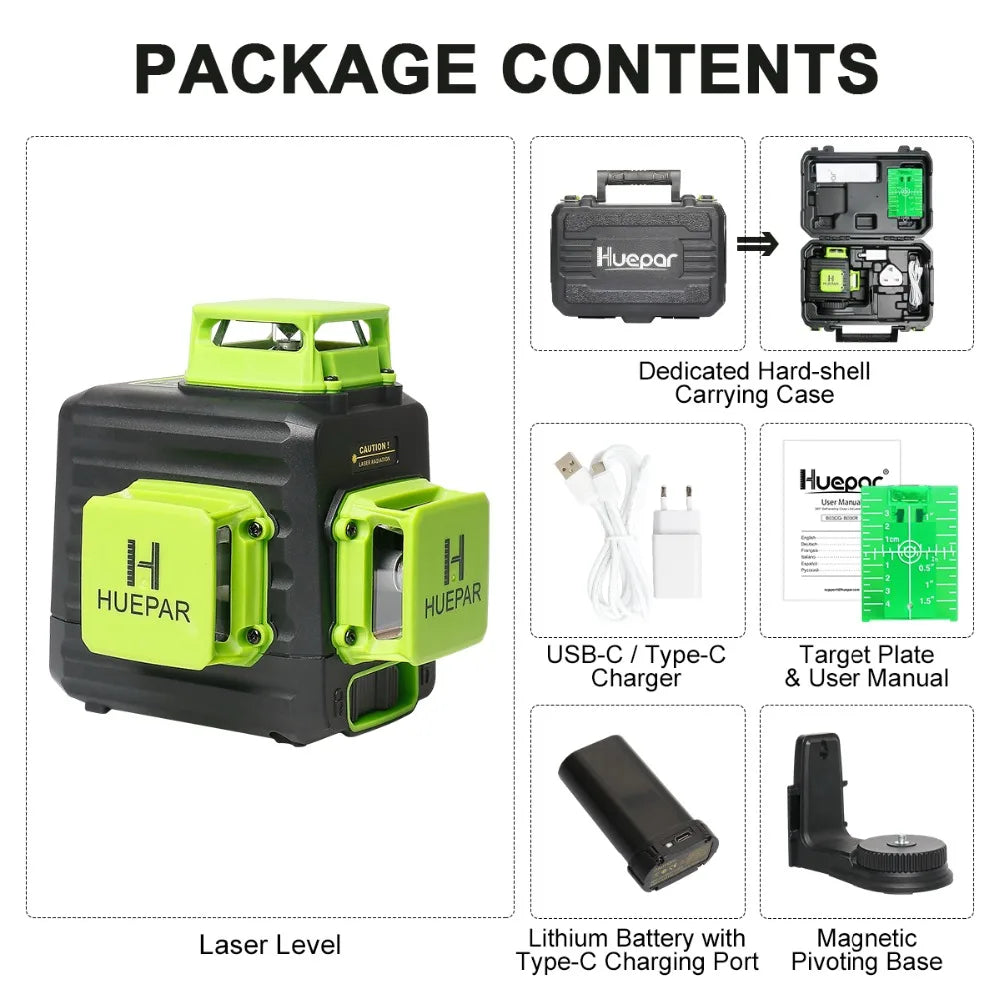

Package Included:

• SET 1:

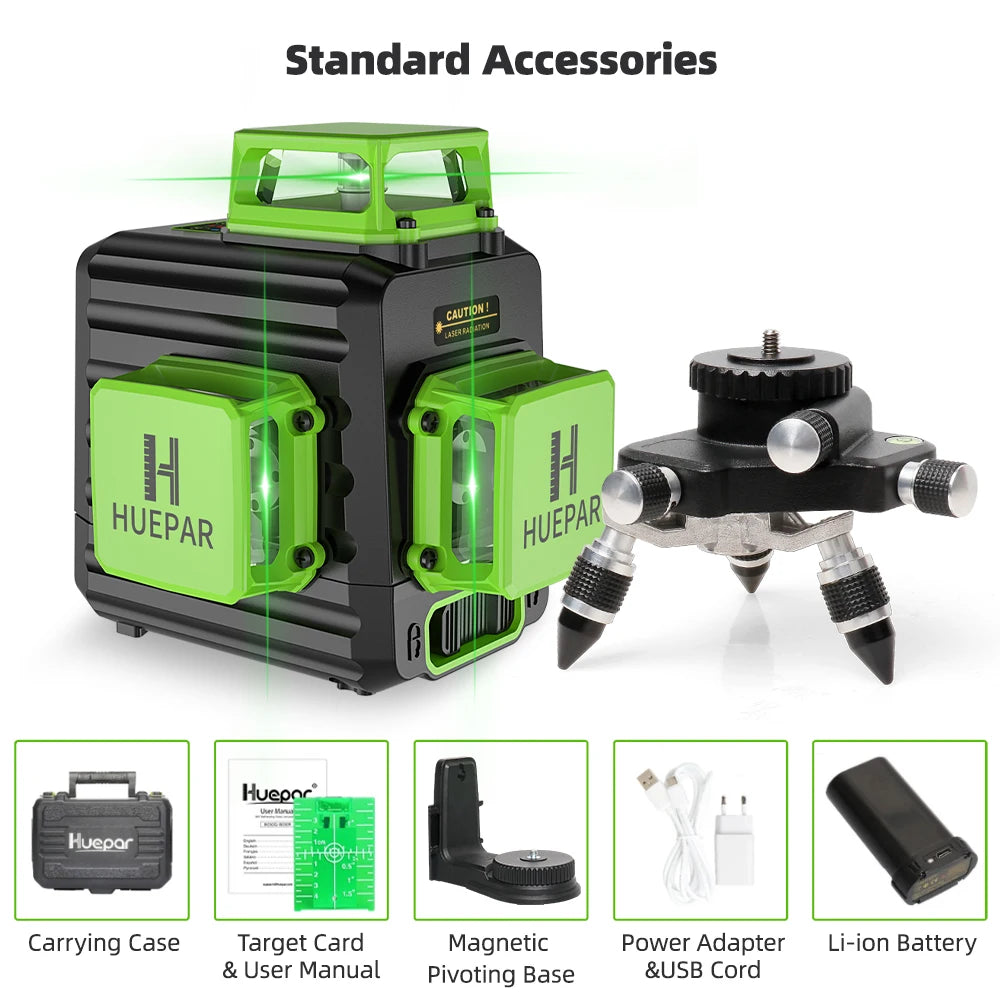

  B03CG Laser Level+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 2:

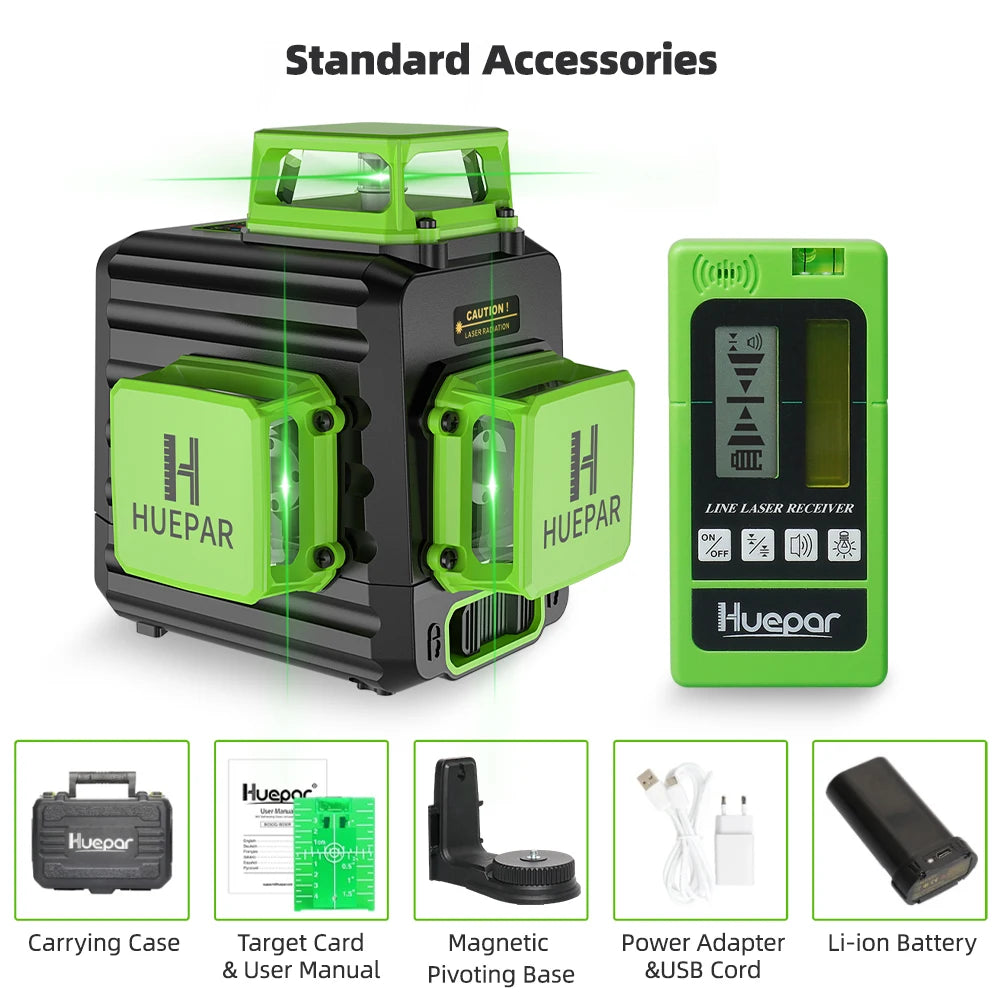

  B03CG Laser Level+Laser Receiver+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 3:

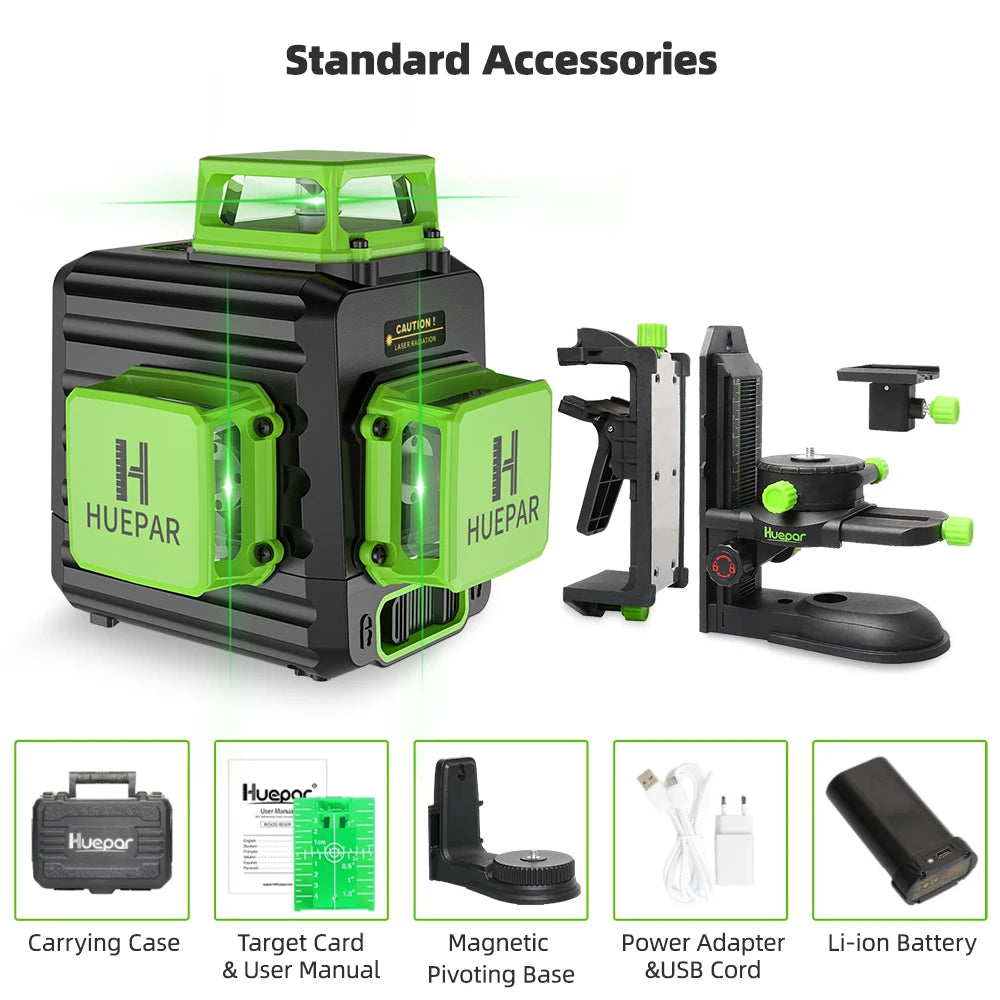

  B03CG Laser Level+AT2 Bracket+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 4:

  B03CG Laser Level+PV10 Bracket+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 5:

  B03CG Laser Level+1.4m Tripod+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 6:

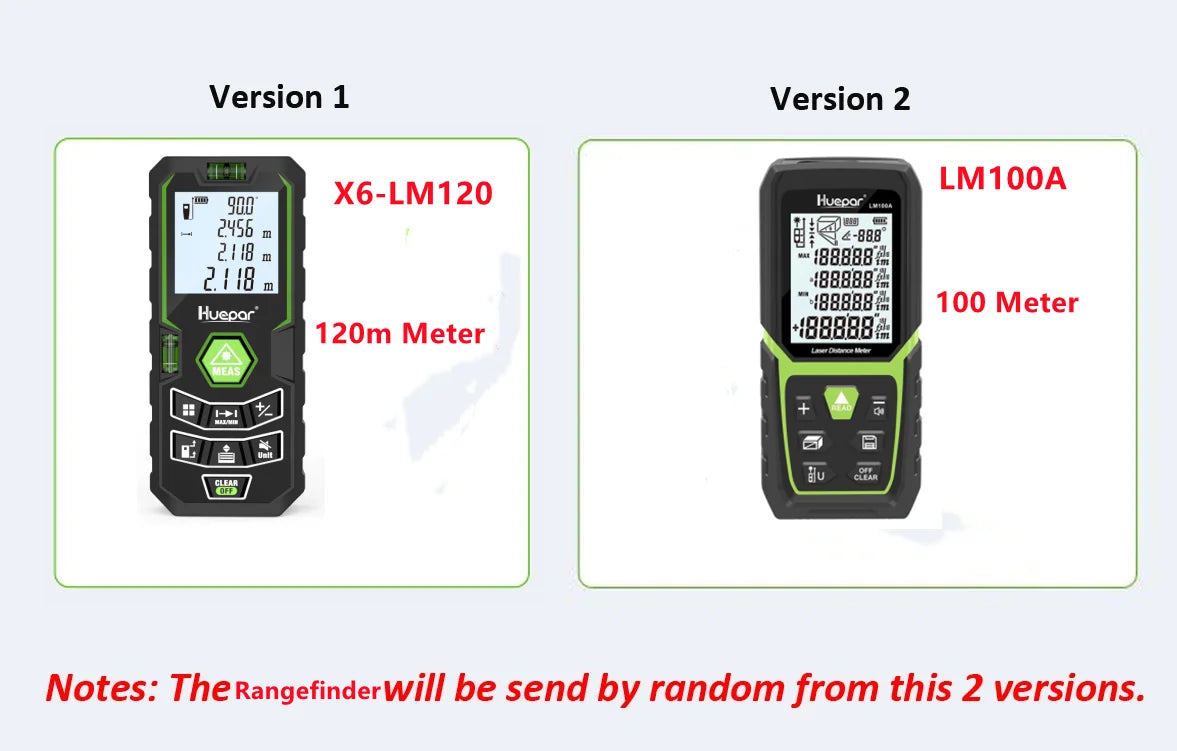

  B03CG Laser Level+100M Laser Rangefinder+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 7:

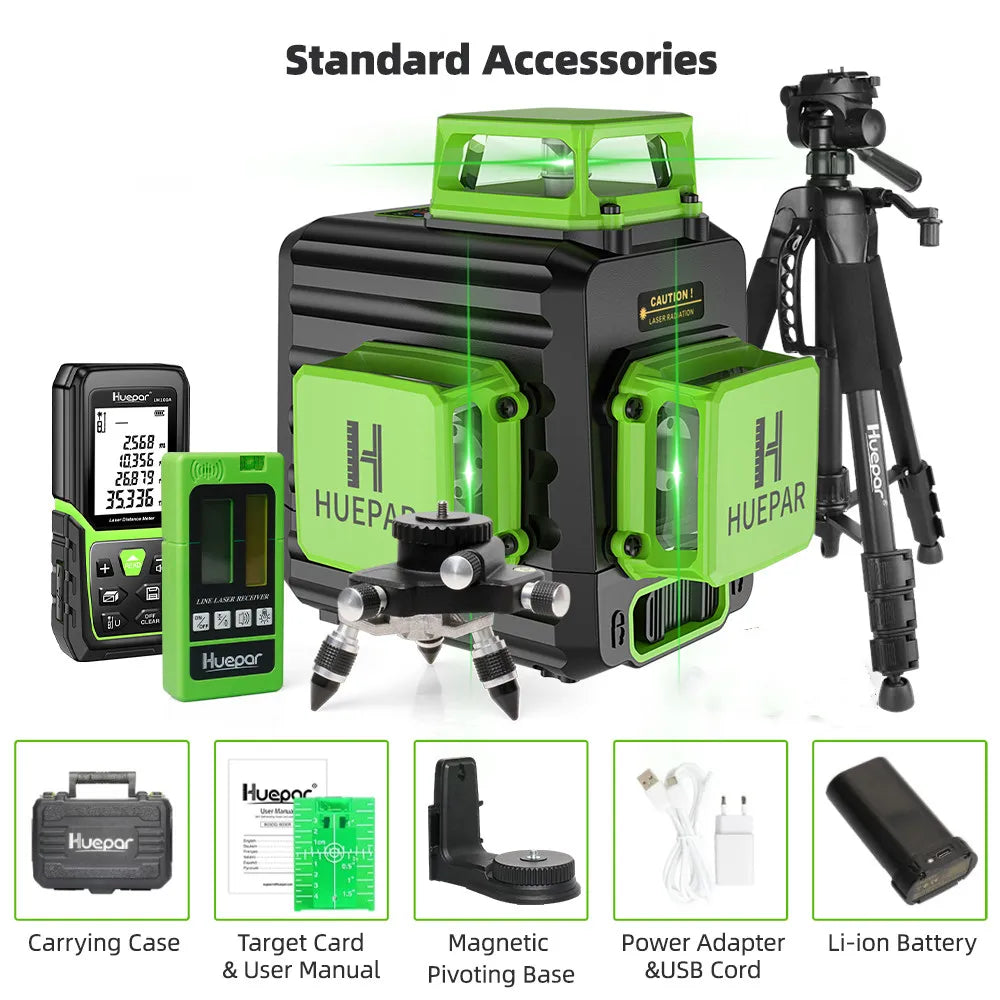

  B03CG Laser Level+Laser Receiver+PV10 Bracket+1.4m Tripod+Green Glasses+100M Laser Rangefinder+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

  SET 8:

  B03CG Laser Level+Laser Receiver+AT2 Bracket+1.4m Tripod+Green Glasses+100M Laser Rangefinder+Battery +Type-C Power Cord+Adapter+Base+Target Plate+ Manual+ Hard Carry Case

B03CG 3 x 360 Green Laser Level Features:

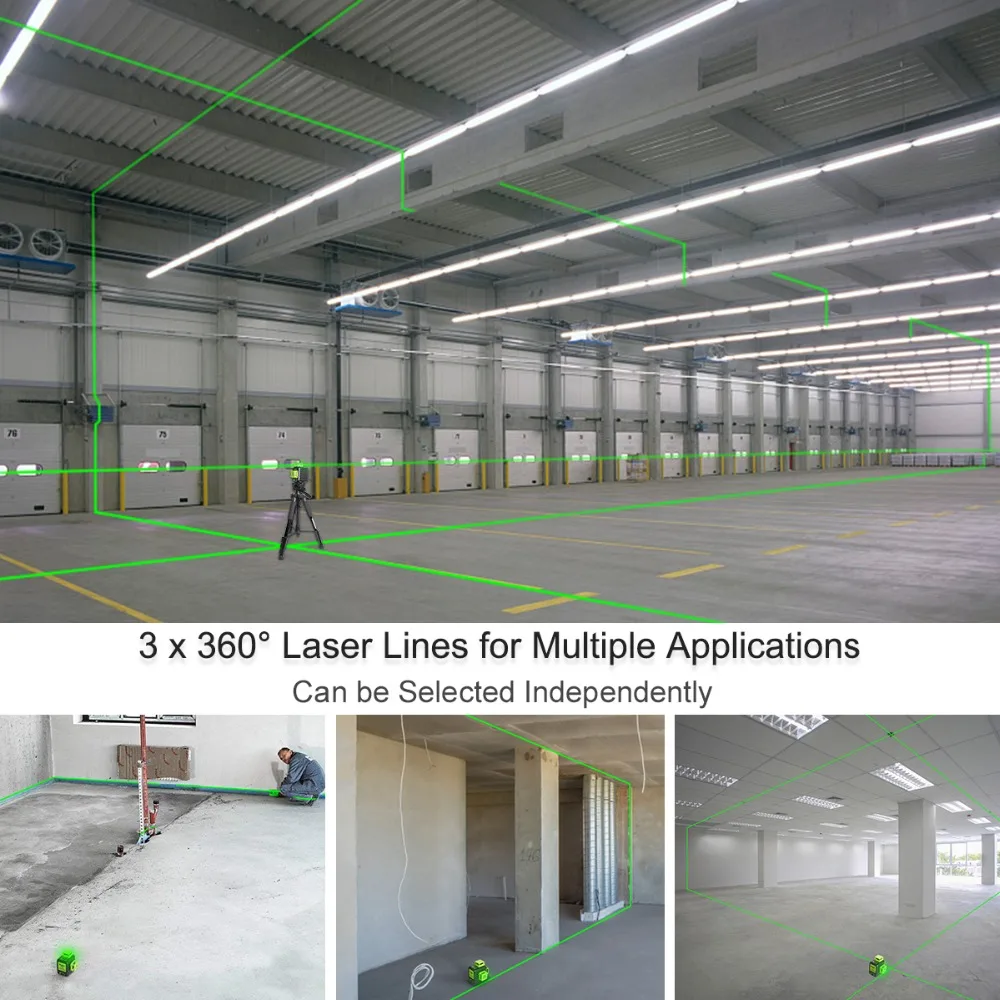

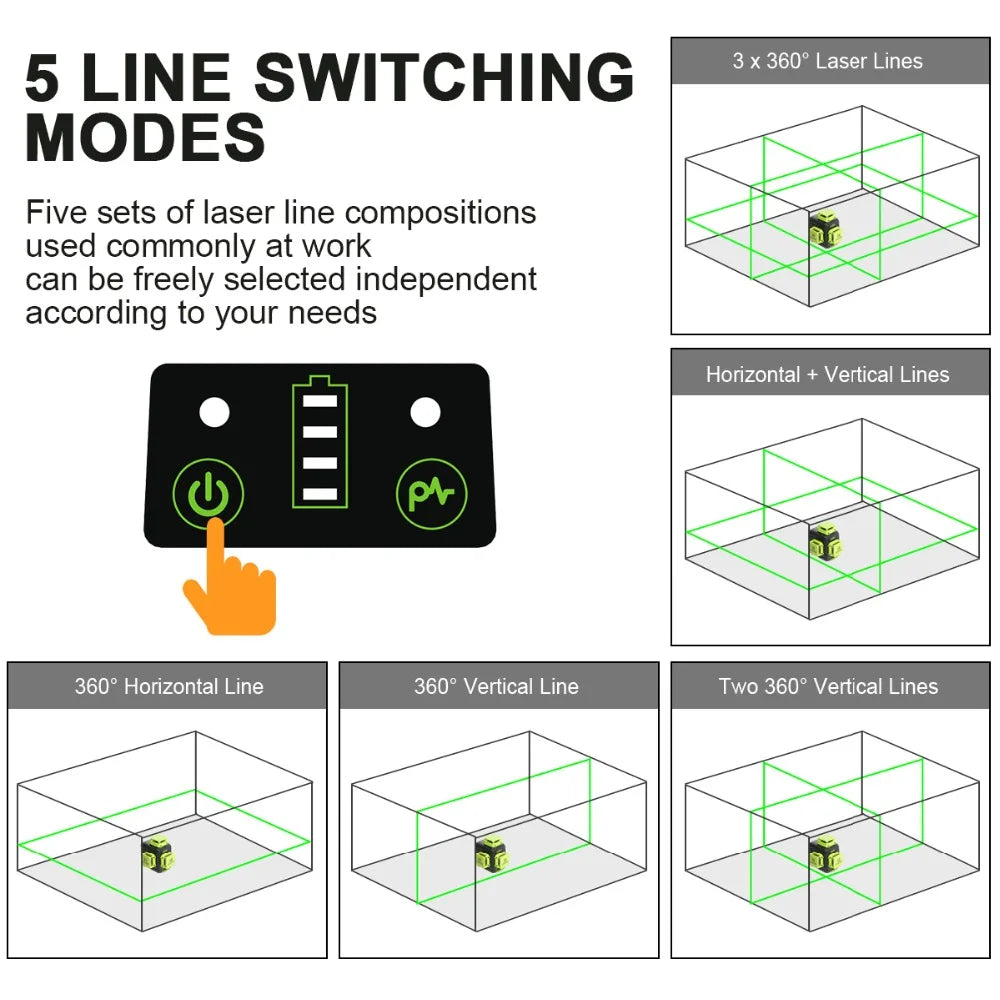

1. 3 x 360° Multiple Line Switching Functions:

• This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.

• The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.

• Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal&360° Vertical Lines mode, 360° Horizontal Line mode, one 360° Vertical Line mode, one 360° Horizontal Line &one 360° Vertical Line mode, Two 360° Vertical Lines mode.

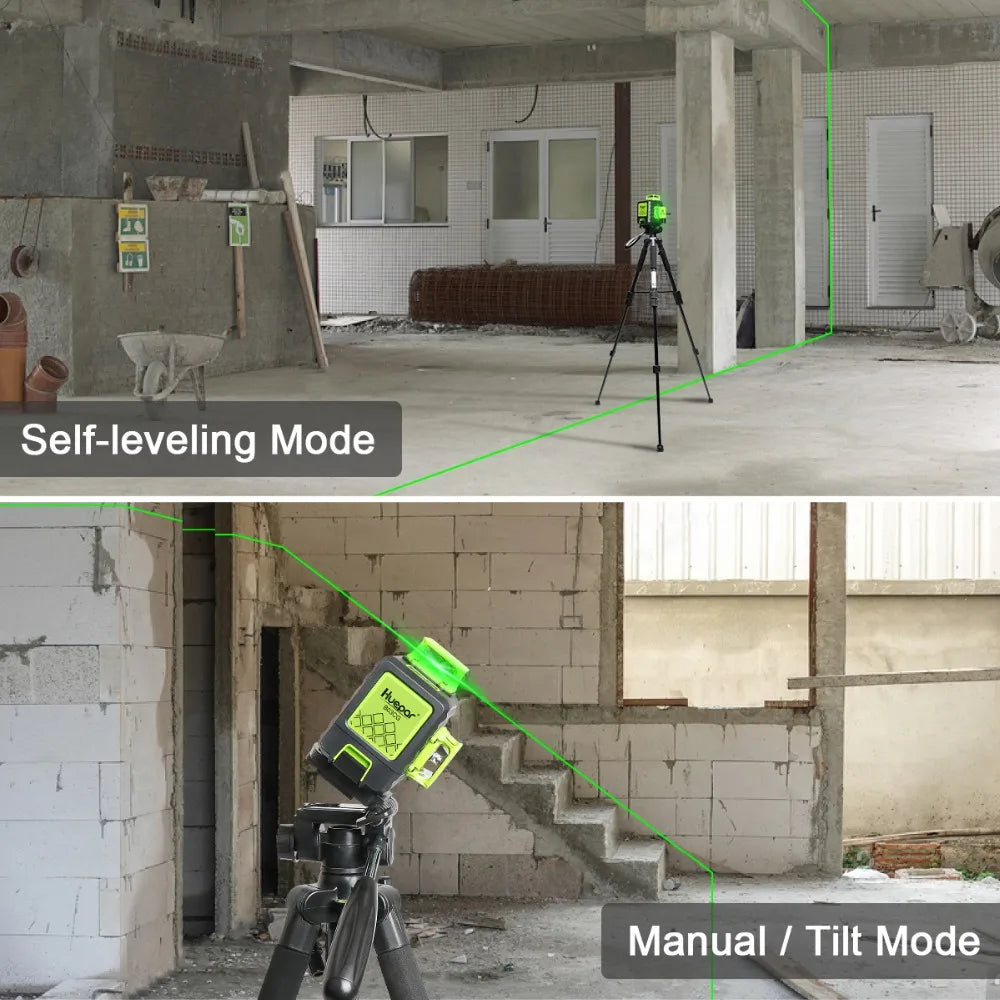

2. Self-leveling mode & Manual mode & Pulse mode:

• Self-leveling mode:  When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

• Manual mode:  When the pendulum lock is in locked position, manual mode locks laser lines in place for use at any angle to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

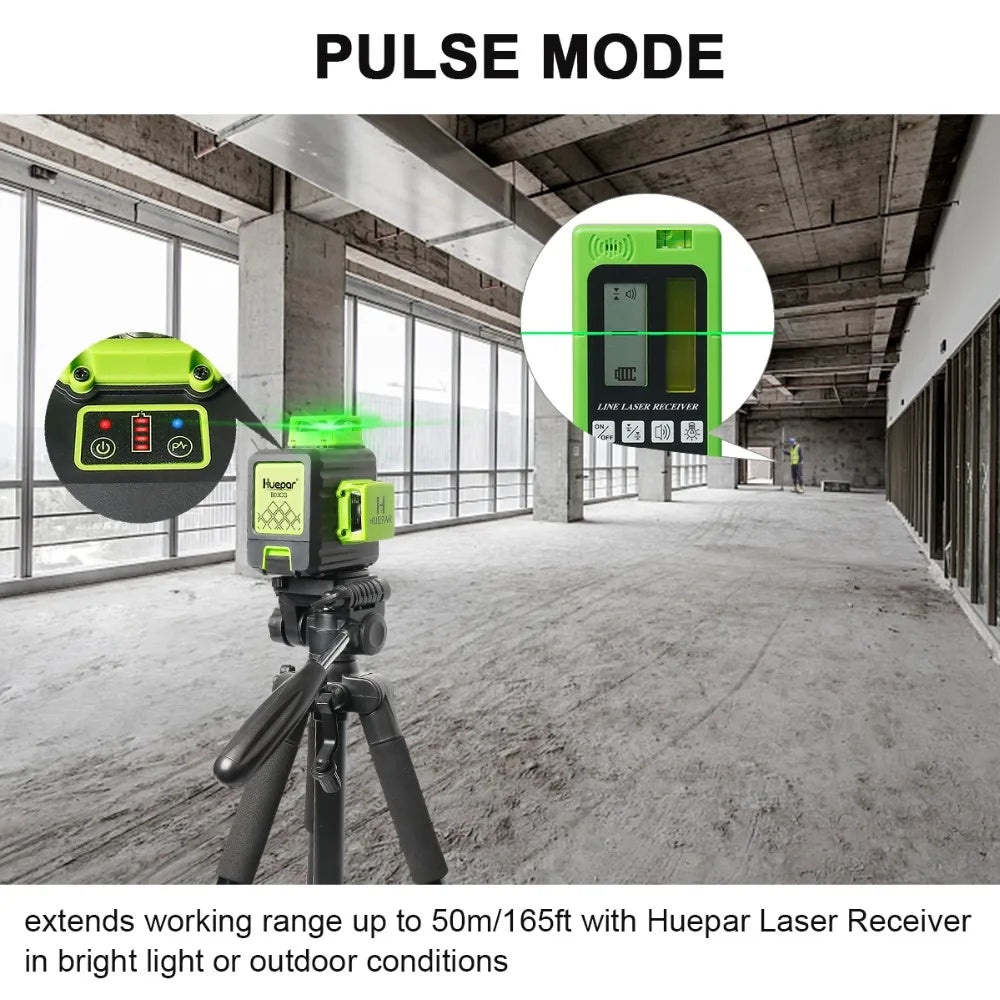

• Pulse Mode: Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in blue.

• Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger working distance.

• Note: When use with a receiver, it’s necessary to turn on the pulse mode.

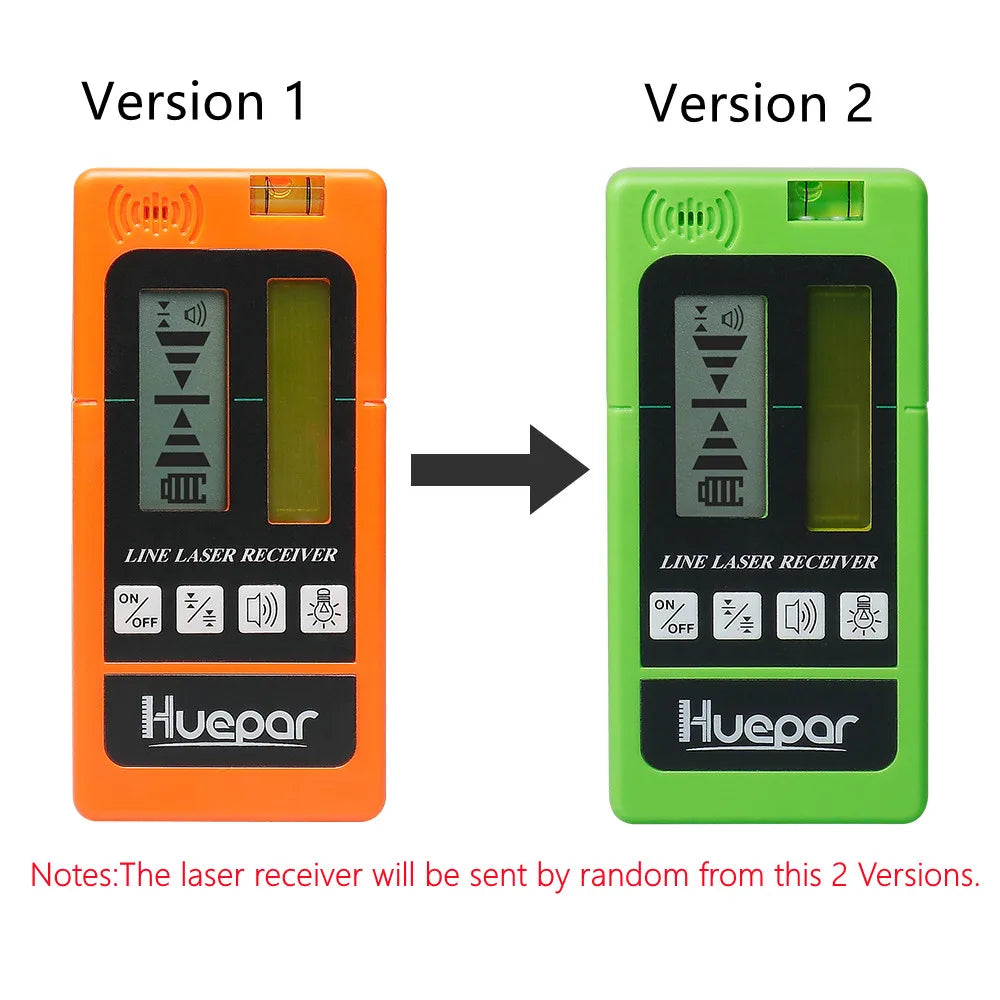

•  It is compatible with Huepar Line Laser Receiver only.

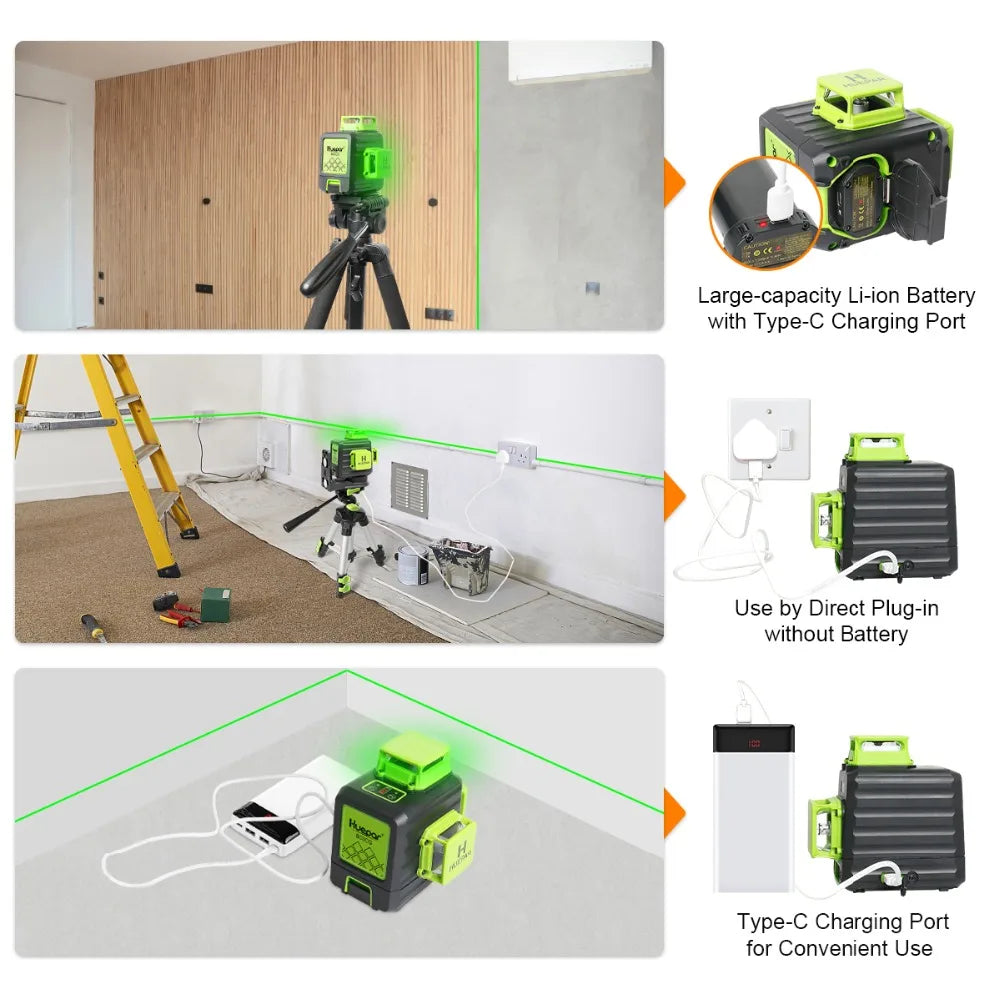

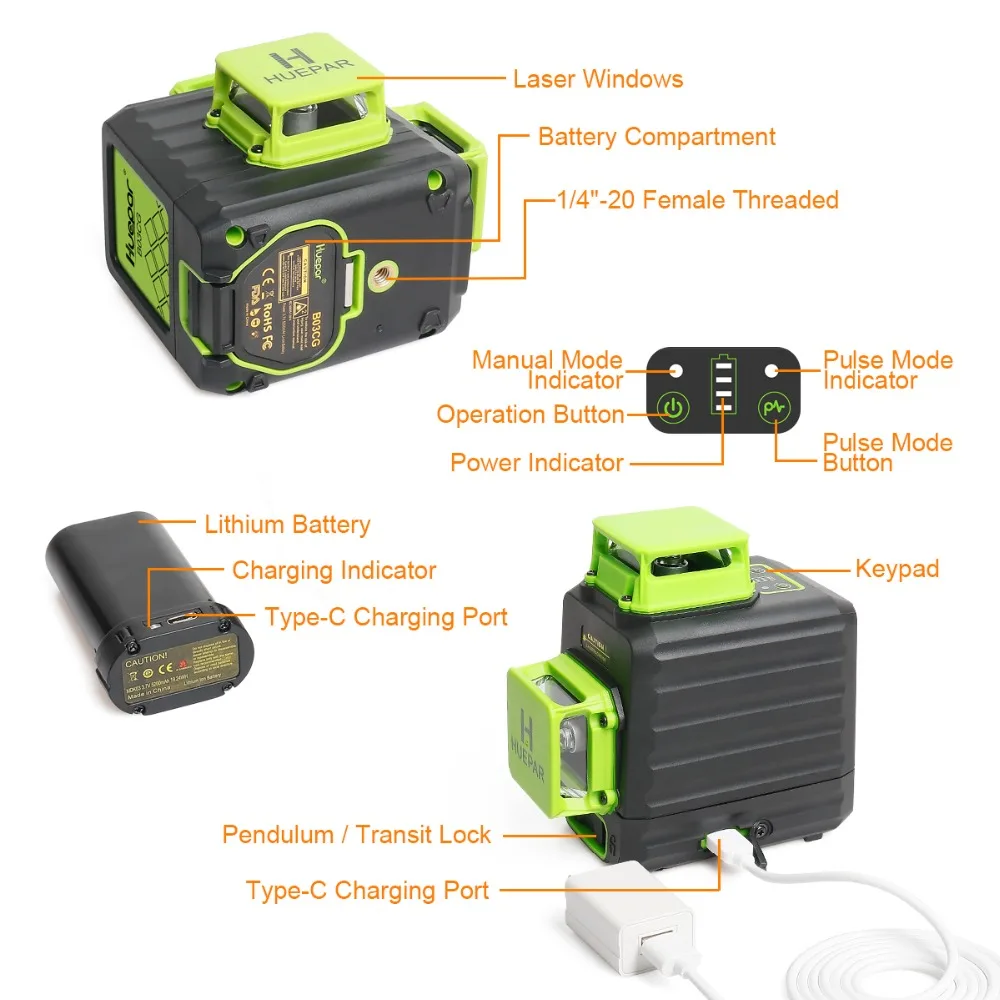

3. Type-C Charging Port:

• This laser tool utilizes the included large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time.

• The lithium battery with the Type-C charging port can be charged separately.

• Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.

• Four battery indicators on keypad allow users to know the current battery volume.

• Charging protection helps prevent from overcharging.

4. Bright Green Laser Diode:

• This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.

• At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.

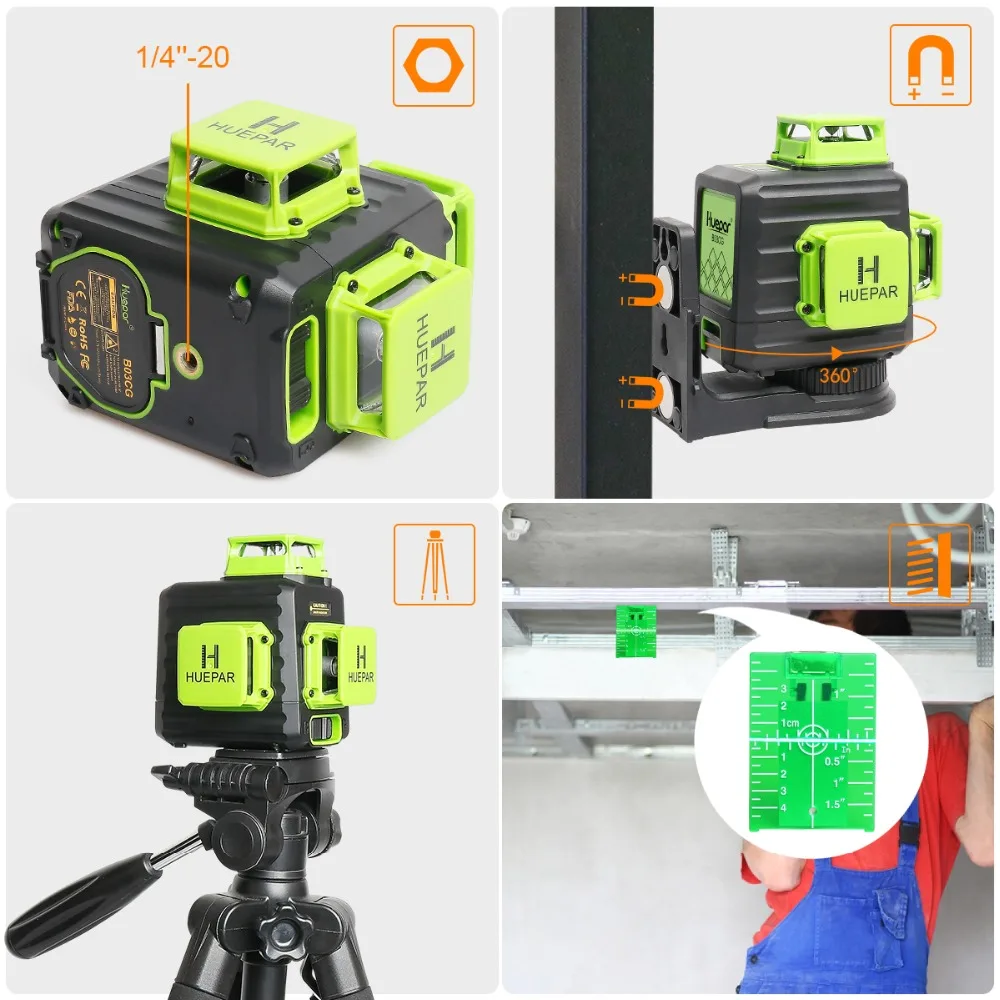

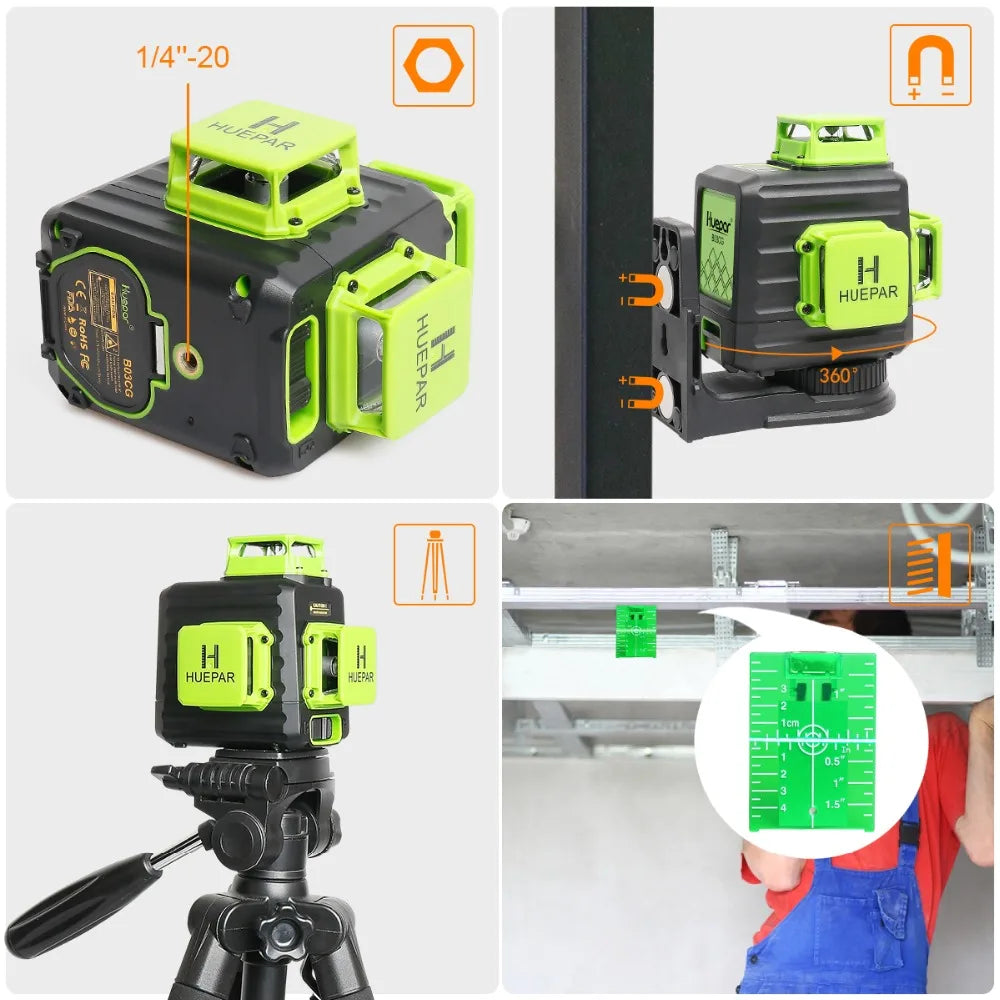

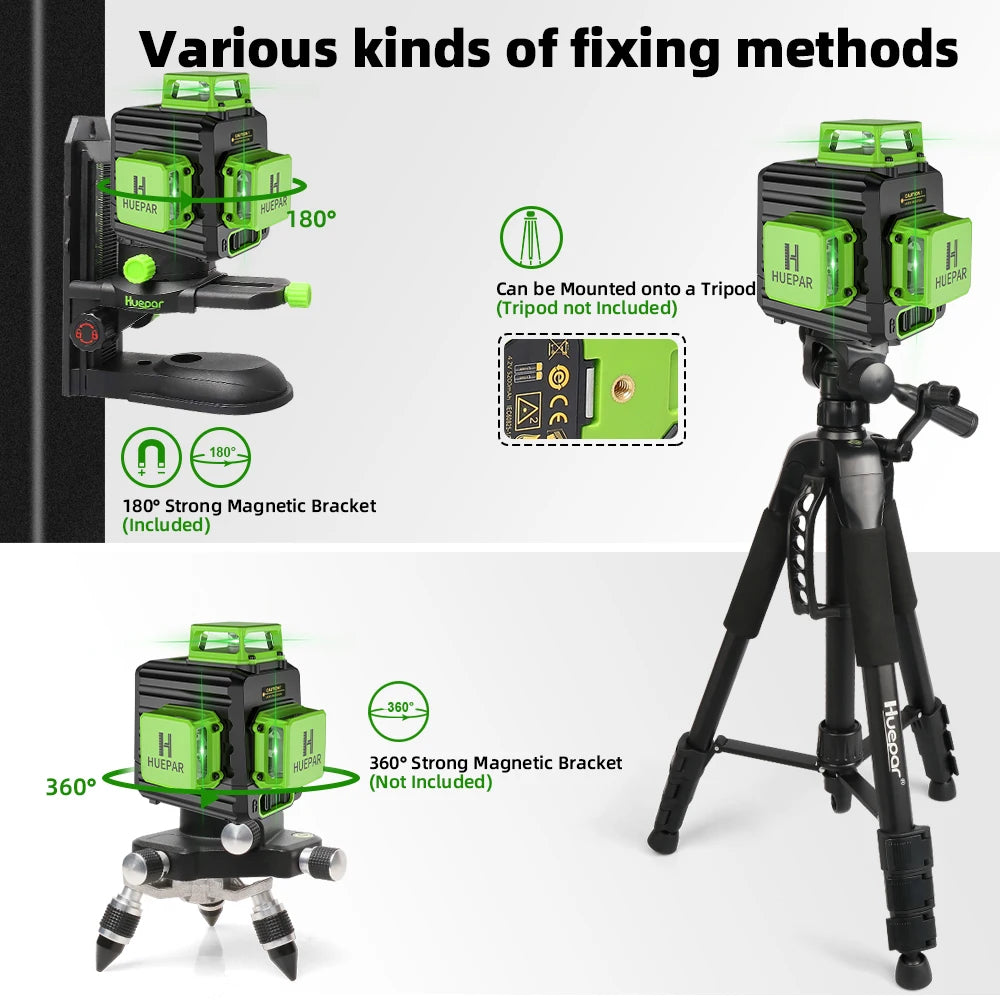

5. More Installation Methods:

• 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.

• 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.

• 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.

• Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.

• Green Target Plate: Increases the visibility of the laser beam.

6. Flat Top Cover & Durable Design:

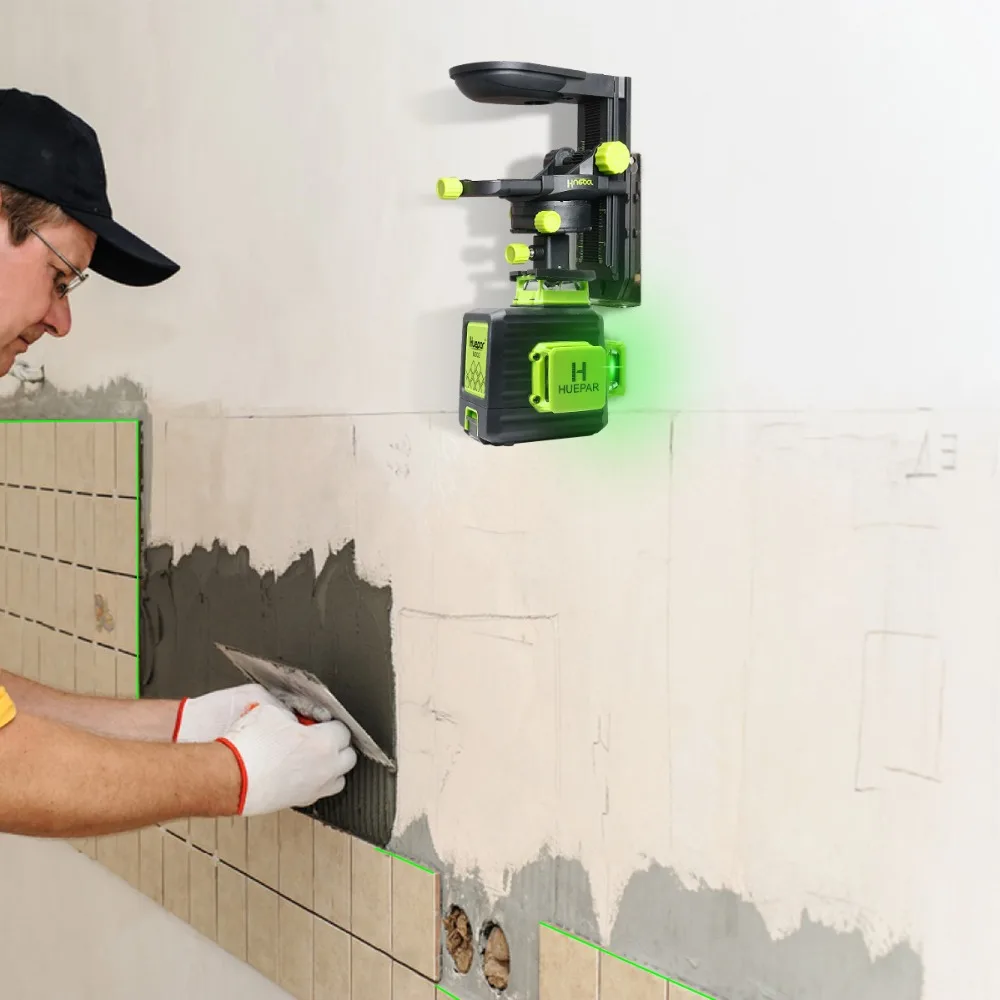

• Designed with the flat top cover, this laser tool projects 360° laser lines for tiling or ceiling installation at 10mm from the wall and ceiling.

• Huepar PV10 + Bracket is recommended for quick setup in wall and ceiling applications (ASIN: B07X2K3TVW, need to purchase separately)

• The laser windows can be removed and replaced with a screwdriver.

• The laser tool is completely covered by TPR soft rubber, which delivers soft touch and stronger protection.

• The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.

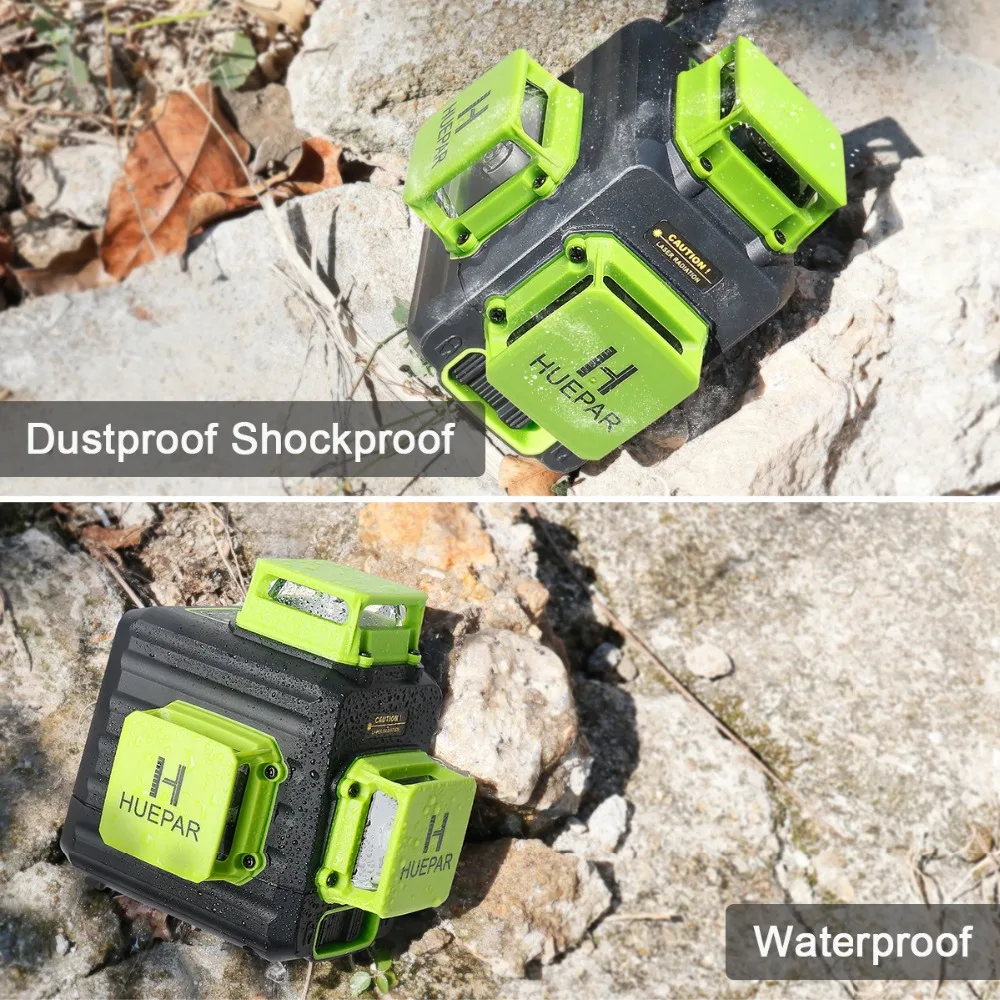

• IP54 water/dust resistance ensures you work well in hazardous working conditions.
